View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
406 | RackTables | default | public | 2011-02-24 11:33 | 2012-12-07 17:45 |
Reporter | Assigned To | hollo | |||
Priority | normal | Severity | feature | Reproducibility | N/A |
Status | closed | Resolution | fixed | ||
Product Version | 0.19.1 | ||||
Target Version | 0.20.2 | Fixed in Version | 0.20.2 | ||
Summary | 406: Code for displaying munin graphs in Racktables | ||||
Description | Hi, My colleagues has modified interface.php to include munin graphs in the Racktables. Below code will come under renderFilesPortlet ('object', $object_id); #############code to be pasted ###############Code Ends if (count ($info['ports'])) { startPortlet ('ports and links'); ############Code############ $has_munin = false; foreach (getAttrValues ($object_id) as $attr_id => $record) { if ($record["name"] == "munin URL" && $record["value"]!="") $has_munin = $record['value']; } if ($has_munin !== false) { startPortlet ('munin'); echo "<iframe frameborder=0 width='100%' height=600 src='$has_munin'></iframe>"; finishPortlet (); } #################Code Ends############## | ||||
Additional Information | Also, I have attached the modified file for reference | ||||
Tags | No tags attached. | ||||
related to | 306 | closed | Rack Tables + Cacti |
2011-02-24 11:33
|
|
One has to associate "munin URL" (case sensitive) attribute (string field) with the server. | |
Jonathan, could you review this? | |
Could you explain the structure of Munin URLs and if Munin feature can be designed after the existing Cacti feature? | |
I have contacted the requestor by means of SourceForge. It is OK to close this bug on 18 Nov 2012, if there is no feedback provided by that time. | |
Hi, I would really much like this feature as well.. but i dont want to enter all the informations for each munin url, can it be something like: $url = 'http://munin.example.com/munin/example.com/nagios.example.com/index.html'; $has_munin = false; $ch = curl_init($url); curl_setopt($ch, CURLOPT_HEADER, true); curl_setopt($ch, CURLOPT_NOBODY, true); curl_setopt($ch, CURLOPT_RETURNTRANSFER, 1); $o = curl_exec($ch); curl_close($ch); if (preg_match("/200 OK/", $o)) { $has_munin = $url; } if ($has_munin !== false) { startPortlet ('munin'); echo "<iframe frameborder=0 width='100%' height=600 src='$has_munin'></iframe>"; finishPortlet (); } That would be awesome.. |
|
But i just started to look at the way cacti was implemented by now.. is that a requirement, then i can try to do that.. else, this would work really really good for me.. Please let me know if i have to do anything. |
|
If you could produce a patch implementing the Munin feature, that would be of a great help (with appropriate credits). I don't have any Munin installations to develop/test this against. And probably not the time right now. Looking at the code above, once the CURL call above succeeds, would it be better to print the retrieved HTML inline rather than generate an IFRAME? | |
You are properly right, its better inline.. so if im looking for a solution: 1. add munin graphs in style with cacti 2. add list of graphs to view - load daily - mem daily - network load daily <?php $host = 'dev.example.com'; $munin_servers = getMuninServers(); $munin_images = getMuninImages(); if (count($munin_servers) > 0) { foreach ($munin_servers as $server) { if (curlCheckIfExistsOnHost($host, $server)) { $images = array(); foreach ($munin_images as $image) { $images[] = $url.$image; } } } } renderStuff(); if thats something you like, i will be glad to add this.. but i really dont like to add support for each and every server, that will require SO much manually work to have munin enabled for all servers, i like some auto stuff? let me know what you think. |
|
Well, I've had a talk with Munin people on IRC to understand their data model. Seems like the most reasonable way to implement this should include: 1. a list of Munin URIs (like the list of Cacti servers), with each URI standing for a different server and/or domain (group) on the server 2. a list of Munin graph names (load, cpu, memory etc) 3. a config option with RackCode telling if a host should have Munin graphs or not (see any _LISTSRC option for a reference and triggers.php) 4. a modification to renderObject() displaying an IMG element for each configured Munin graph 5. a Munin graph management tab on the object page, allowing the user to delete/modify configured graphs and add new graphs, with one SELECT for pre-configured URIs and another (or a text field) for graph name Would you take care of this? |
|
Hi, Well no problem.. i will properly have some questions about the code design when i get started.. but if you are up for helping me out once in a while.. i will make the extension? |
|
Fine, let's try. This bug is now yours, please try producing a working code by the next release, 0.20.2 is out (within next, say, 4 weeks). The source code is here: https://github.com/RackTables/racktables I will provide some guidance, but keep in mind the guys on #racktables IRC channel on FreeNode may have answers to some of your questions faster. |
|
has made a pull request on github. | |
|
|
|
|
Date Modified | Username | Field | Change |
---|---|---|---|
2011-02-24 11:33 |
|
New Issue | |
2011-02-24 11:33 |
|
File Added: interface.php | |
2011-02-24 11:35 |
|
Note Added: 0000272 | |
2011-02-24 11:53 | infrastation | Relationship added | related to 306 |
2011-07-26 13:13 | infrastation | Status | new => assigned |
2011-07-26 13:13 | infrastation | Assigned To | => user105 |
2011-07-26 13:13 | infrastation | Note Added: 0000382 | |
2012-10-18 10:38 | infrastation | Note Added: 0000881 | |
2012-10-18 10:38 | infrastation | Assigned To | user105 => |
2012-10-18 10:38 | infrastation | Status | assigned => feedback |
2012-10-18 10:50 | infrastation | Note Added: 0000883 | |
2012-10-19 12:45 | hollo | Note Added: 0000911 | |
2012-10-19 12:54 | hollo | Note Added: 0000913 | |
2012-10-19 14:13 | infrastation | Note Added: 0000915 | |
2012-10-19 14:22 | hollo | Note Added: 0000917 | |
2012-10-19 22:07 | infrastation | Note Added: 0000919 | |
2012-10-20 11:32 | hollo | Note Added: 0000921 | |
2012-10-20 12:07 | infrastation | Note Added: 0000925 | |
2012-10-20 12:07 | infrastation | Assigned To | => hollo |
2012-10-20 12:07 | infrastation | Status | feedback => assigned |
2012-10-20 12:07 | infrastation | Target Version | => 0.20.2 |
2012-10-22 12:48 | hollo | Note Added: 0000929 | |

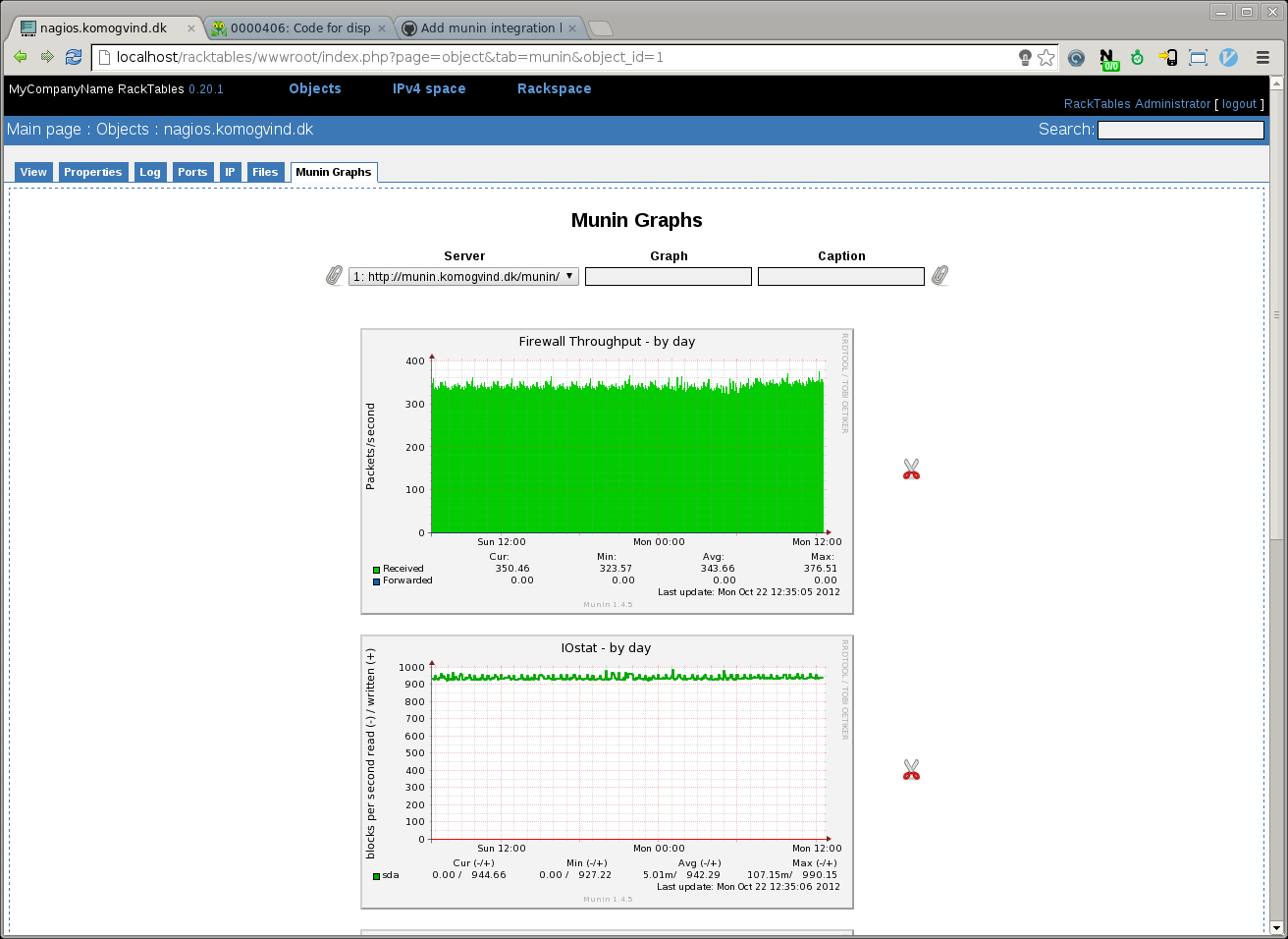

2012-10-22 12:50 | hollo | File Added: 2012-10-22-124939_1312x956_scrot.png | |

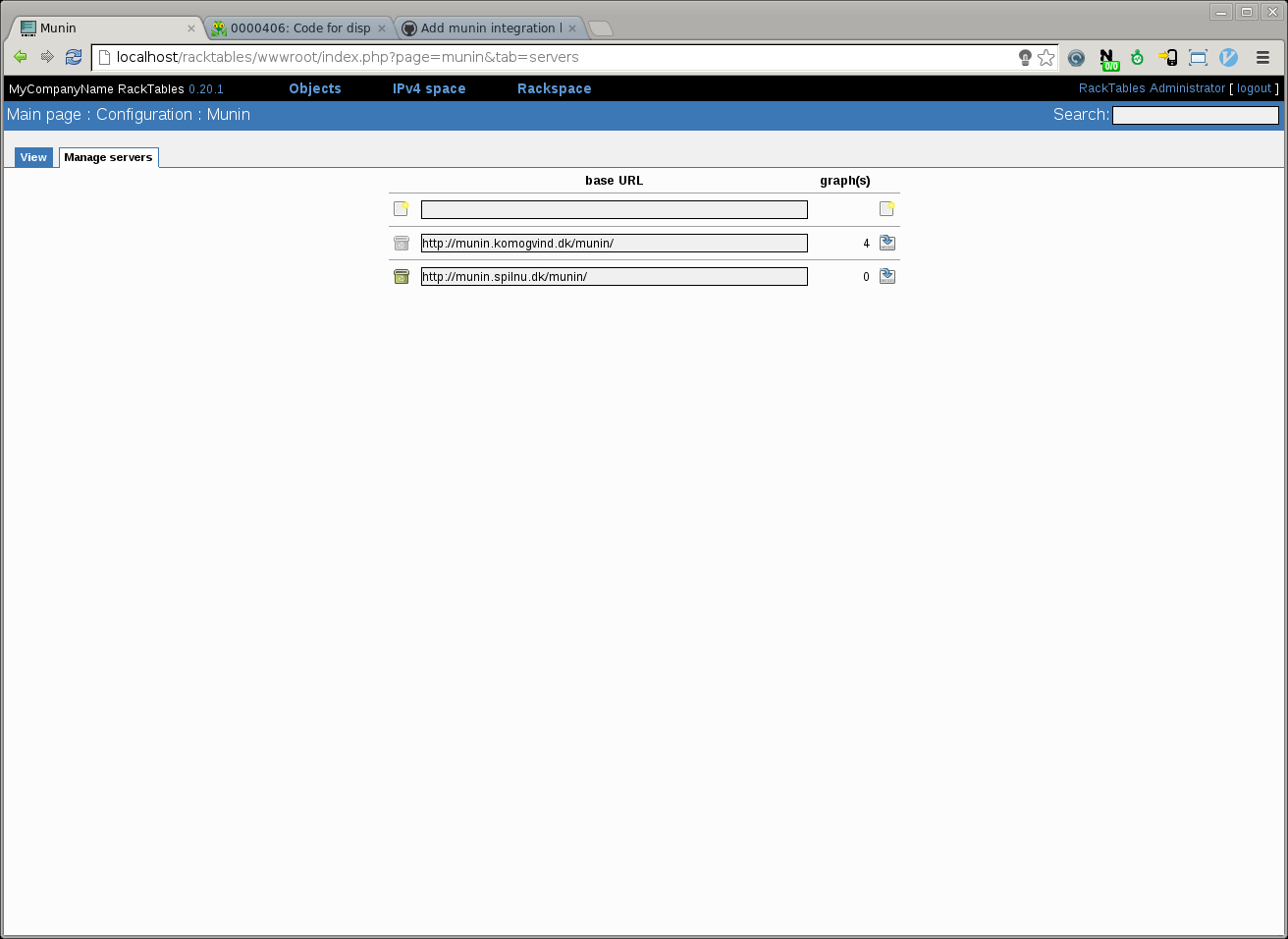

2012-10-22 12:50 | hollo | File Added: 2012-10-22-125050_1312x956_scrot.png | |
2012-10-23 16:40 | infrastation | Status | assigned => closed |
2012-10-23 16:40 | infrastation | Resolution | open => fixed |
2012-10-23 16:40 | infrastation | Fixed in Version | => 0.20.2 |
