View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
574 | RackTables | default | public | 2012-06-21 13:22 | 2012-06-28 14:57 |
Reporter | Assigned To | infrastation | |||
Priority | low | Severity | minor | Reproducibility | always |
Status | closed | Resolution | no change required | ||
Product Version | 0.19.12 | ||||

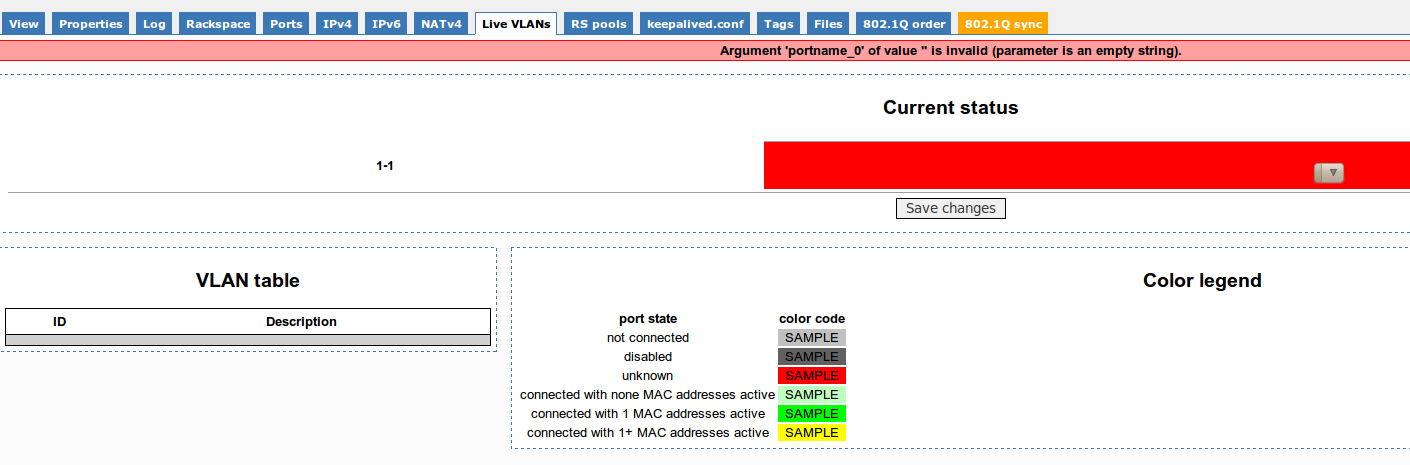

Summary | 574: Argument 'portname_0' of value '' is invalid | ||||
Description | Cisco 3548XL RO password inserted to gateways/deviceconfig/switch.secrets.php After "Save" erro message are shown | ||||
Tags | No tags attached. | ||||
Attached Files | |||||
"Live VLANs" is barely supported, but... could you attach a packet dump of the telnet session taking place during page display? | |
There are no any packets to switch sent. Racktables server has eth0 port only. ---------------- #tcpdump host switchIPaddress tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on eth0, link-type EN10MB (Ethernet), capture size 96 bytes ------------- No any packets. Firstly port 23 wasn't set to configs. no any packets. Than I added 23 port to switch.secret and cisco.secret.php. No any packets. The same error on the page. |
|
#cat ../gateways/switchvlans/cisco.secrets.php <?php ob_start(); ?> # Syntax: # <endpoint|*> <telnet> <hostname|-> <port|-> <username|-> <line password> <enable password> # FIXME: <endpoint|*> <rsh> <username> # S-T-A-R-T switch1 telnet - - - password2 enablepassword switch2 telnet - - - password enablepassword switch3 telnet - - username3 password3 enablepassword3 sw01 telnet xxx.yyy.zzz.201 23 myuser mypass - sw05 telnet xxx.yyy.zzz.205 23 myuser mypass - # S-T-O-P ----------- sw01 and sw05 are names of switches in Racktables. |
|
The comment in cisco.secrets.php is misleading, a correct line would look like: sw0[15].example.com telnet - - myuser mypass - Switches sw01 and sw05 must have their FQDN attribute properly set for this to work (FQDN must resolve into IP address). |
|
ping sw0[15].example.com works. sw0[15].example.com telnet - - myuser mypass - Output "subcommand failed with status: ERR!Cannot connect to sw05.example.com (password not found)" sw05.example.com telnet ipaddr 23 myuser mypass - output "subcommand failed with status: ERR!Cannot connect to sw05 (password not found)" |
|
ooo... It works. | |
The second issue: I see MAC address table on the one switch but don't see in other. I see MAC address table on 6 switches from 10. All switches are the same with the same IOS version. |
|
MAC address table is currently best viewed through "Live ports" extension (will become available after configuring "deviceconfig" gateway). I am closing this request and suggest using racktables-users@ for further configuration issues. | |
Date Modified | Username | Field | Change |
---|---|---|---|
2012-06-21 13:22 |
|
New Issue | |
2012-06-21 13:22 |
|
Status | new => assigned |
2012-06-21 13:22 |
|
Assigned To | => infrastation |
2012-06-21 13:22 |
|
File Added: Cisco-LiveVLANs.png | |
2012-06-22 11:03 | infrastation | Note Added: 0000679 | |
2012-06-22 11:30 |
|
Note Added: 0000680 | |
2012-06-22 11:41 |
|
Note Added: 0000681 | |
2012-06-22 11:53 | infrastation | Note Added: 0000682 | |
2012-06-22 12:11 |
|
Note Added: 0000683 | |
2012-06-25 08:28 |
|
Note Added: 0000685 | |
2012-06-25 09:25 |
|
Note Added: 0000686 | |
2012-06-28 14:57 | infrastation | Note Added: 0000691 | |
2012-06-28 14:57 | infrastation | Priority | normal => low |
2012-06-28 14:57 | infrastation | Status | assigned => closed |
2012-06-28 14:57 | infrastation | Resolution | open => no change required |
2012-06-28 14:57 | infrastation | Category | 802.1Q VLANs => default |
