View Issue Details

IDProjectCategoryView StatusLast Update
1947RackTablesdefaultpublic2020-01-16 23:30
Reporterjluo Assigned To
Status closedResolutionunable to reproduce
Product Version0.21.3
Summary1947: Object Port not loading
DescriptionIf there is at least 60 ports on an object if the page would not load or would not show all the ports.
Steps To ReproduceUsed the multi port port creator and made 60 sftp+ ports. Then tried to refresh, reload, leave and come back.
Additional InformationMySQL has the ports not shown in it's system as trying to create a port of the same name will error out saying that there is a port of the same name.
TagsNo tags attached.




2019-12-05 20:28




2019-12-05 22:39

administrator   ~0004025

Does the problem reproduce on


2019-12-12 18:13

reporter   ~0004033

It does not reproduce on


2019-12-12 20:14

administrator   ~0004035

If you check the page source, does the generated HTML end abruptly or contain any invalid characters or error messages? Are there any PHP errors/warnings in the server error log?


2019-12-13 14:34

reporter   ~0004037

There is no browser error in Edge but there is an error in Chrome.

This error pops up in the error log file when both edge and chrome try to load the page.
2019/12/13 13:32:09 [crit] 32#32: *1431 open() "/var/tmp/nginx/fastcgi/7/03/0000000037" failed (13: Permission denied) while reading upstream, client:, server: localhost, request: "GET /index.php?page=object&tab=ports&object_id=123 HTTP/1.1", upstream: "fastcgi://", host: "IP Address"


2019-12-13 15:16

administrator   ~0004039

It looks more like a nginx/FastCGI configuration issue rather than a RackTables bug. I do not have much experience in this area, but I would guess there is a data buffer between nginx and PHP, and one of the components is not properly writing to it or the other isn't properly reading from it, or even both. For example, the two ends could have different assumptions about the default buffer size, but the HTTP response needs to be of a specific size to make the problem visible. Hopefully this provides enough direction for you to investigate the server configuration closer.


2020-01-16 23:30

administrator   ~0004041

From the comments above I have to conclude most likely this is either a server misconfiguration or a bug in some other software, hence closing. Feel free to reopen if you can prove the problem belongs to RackTables.

Issue History

Date Modified Username Field Change
2019-12-05 20:28 jluo New Issue

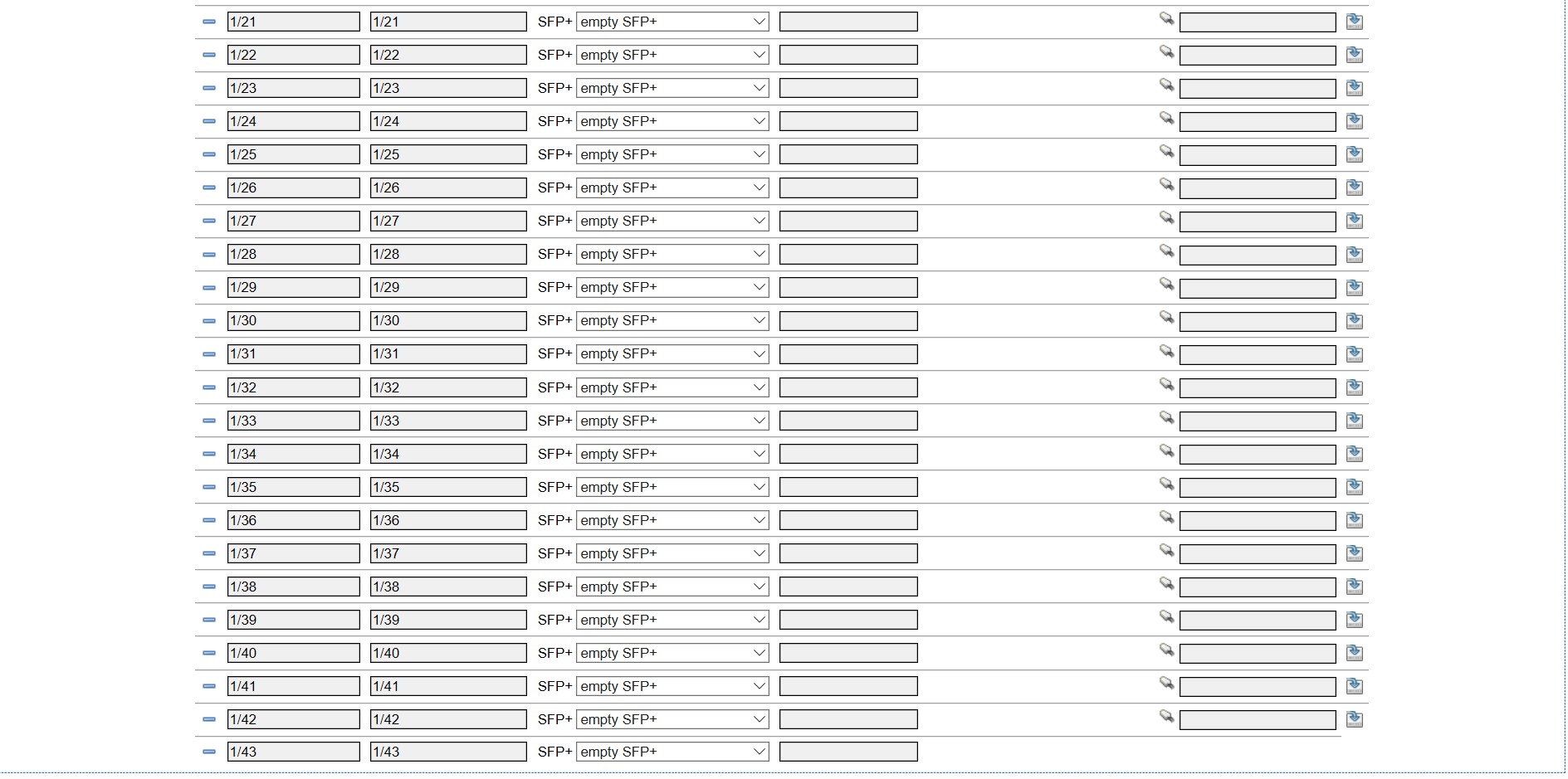

2019-12-05 20:28 jluo File Added: Capture.PNG
2019-12-05 22:39 infrastation Note Added: 0004025
2019-12-12 18:13 jluo Note Added: 0004033
2019-12-12 20:14 infrastation Note Added: 0004035
2019-12-13 14:34 jluo Note Added: 0004037
2019-12-13 15:16 infrastation Note Added: 0004039
2020-01-16 23:30 infrastation Status new => closed
2020-01-16 23:30 infrastation Resolution open => unable to reproduce
2020-01-16 23:30 infrastation Note Added: 0004041
