Summary2039: Adding new cacti graph

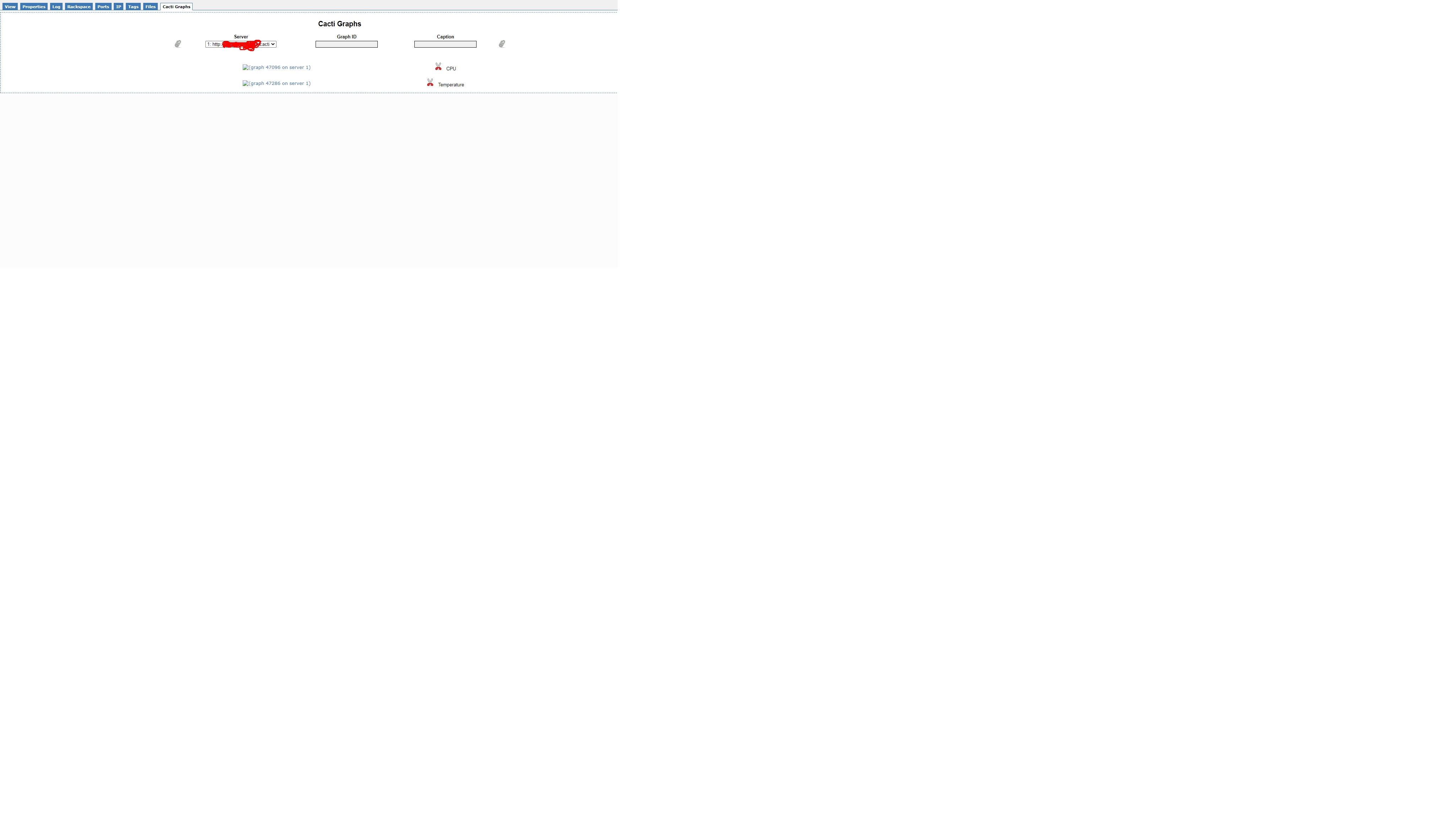

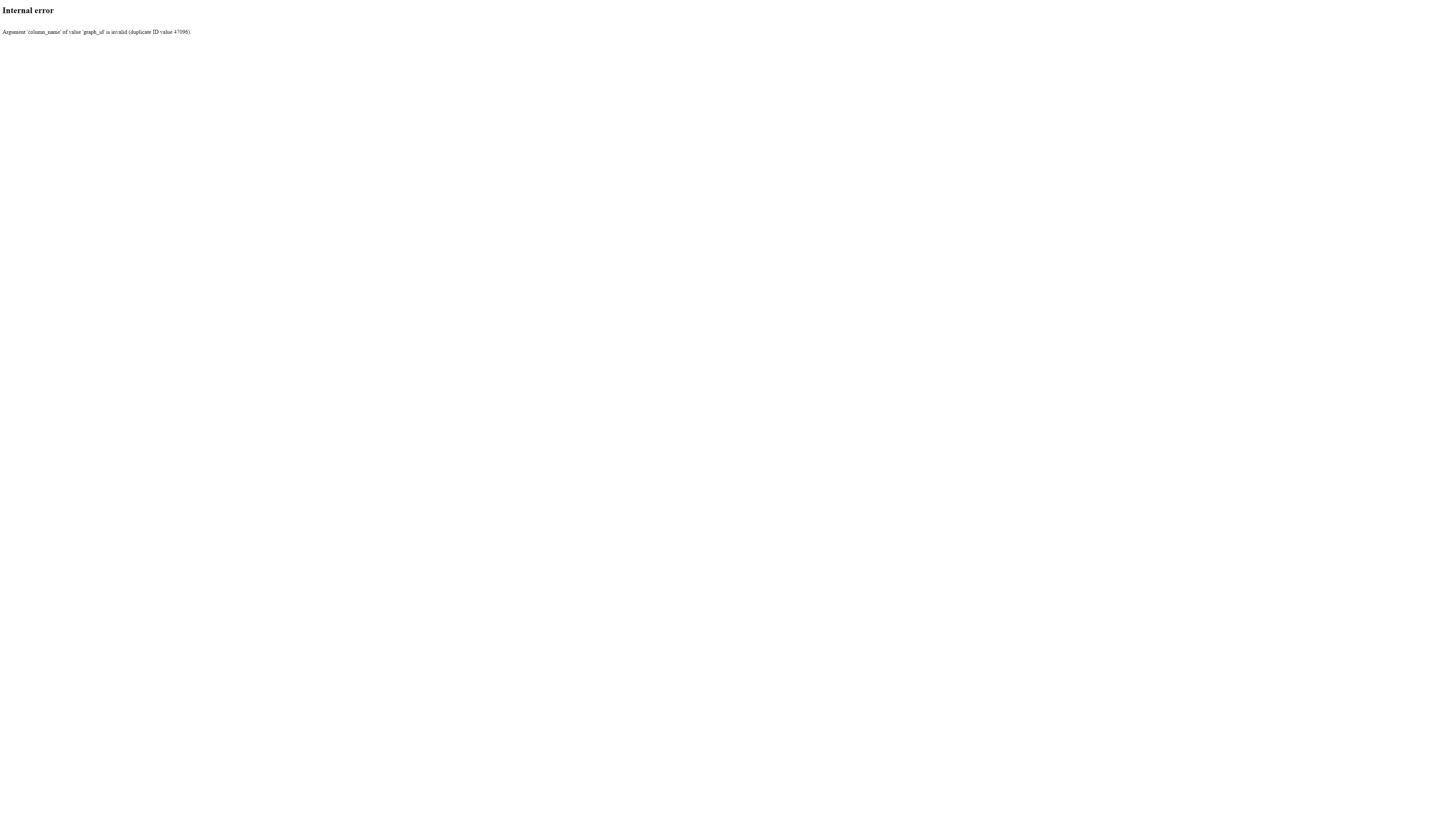

DescriptionWhen I added new grafs to object, I can not see them just a links, but when i added new graph to the same object with the same id from other servers received an error : internal error Argument 'column_name' of value 'graph_id' is invalid (duplicate ID value 47096). And question is why I didnt see graphs when I added them just links , why is it not provided that there can be several cacti bases with the same id graphs? how can I fix this on my own
Steps To Reproduceadd new grapf with thr same id
TagsNo tags attached.

Activities

VL

VL

2021-07-21 02:50

reporter

infrastation

infrastation

2021-07-22 02:00

administrator   ~0004327

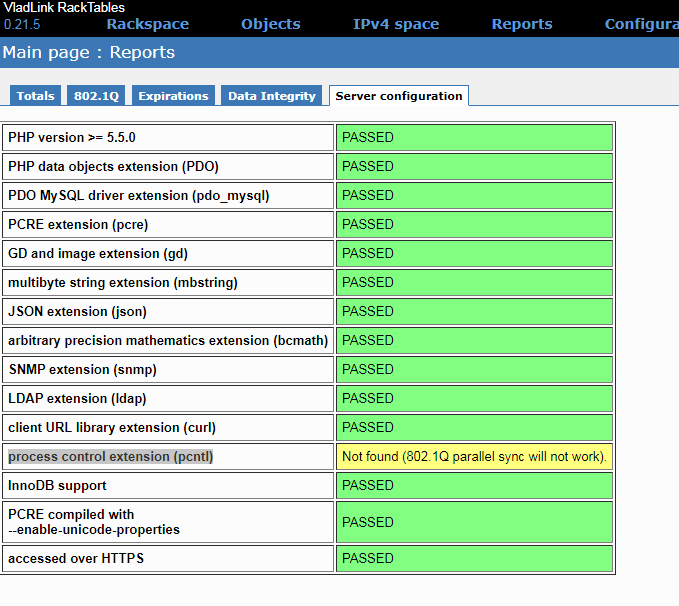

Could you add a copy of the table at Main page : Reports : Server configuration?
VL

VL

2021-07-22 07:13

reporter   ~0004329

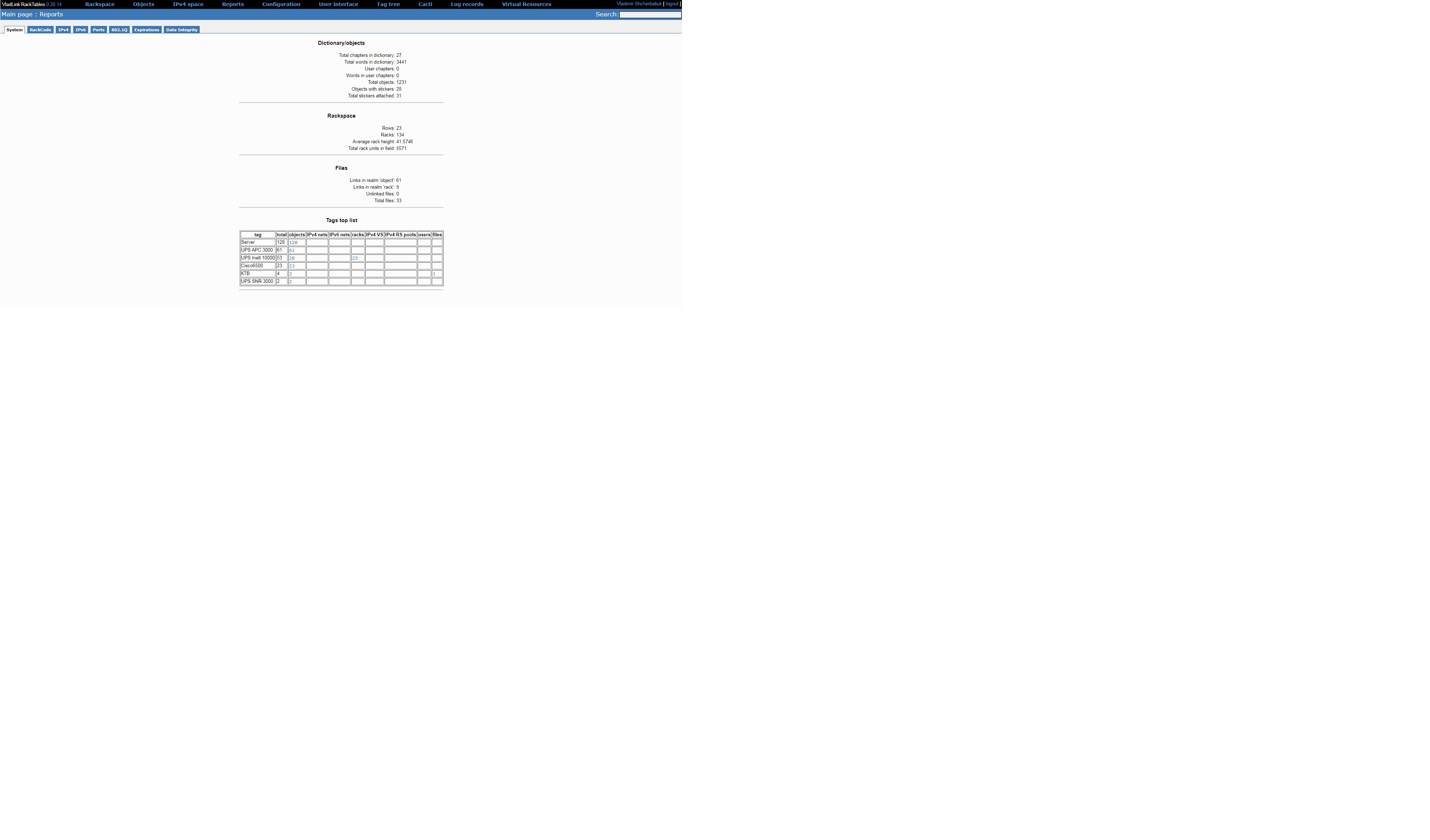

May be it shoud be enable somewhere? I can not se? it.
infrastation

infrastation

2021-07-22 11:26

administrator   ~0004331

Right, that report was not available in release 0.20.14, which is 4 years behind. It would be best to make backups of code and data (or a VM snapshot) and to try upgrading to release 0.21.5 then.
VL

VL

2021-07-29 06:54

reporter   ~0004339

updated
VL

VL

2021-07-29 07:52

reporter   ~0004341

After update, I can't find tab cacti((
infrastation

infrastation

2021-07-29 10:12

administrator   ~0004343

Does the first picture look any different now?
infrastation

infrastation

2021-07-29 10:21

administrator   ~0004345

The Cacti plugin is not enabled by default (perhaps there is a bug there, but anyway). If you do NOT need any graphs you had created earlier, it is OK to run the following SQL commands
DROP TABLE CactiGraph;
DROP TABLE CactiServer;

Then you will be able to enable the plugin at Main page : Configuration : Plugins.
infrastation

infrastation

2021-07-29 10:23

administrator   ~0004347

Or even better, run the following query instead to enable the plugin:
INSERT INTO Plugin VALUES ('cacti','Cacti','1.0','http://www.racktables.org/','enabled');

Then please check if the first image still looks like before.

Issue History

Date Modified Username Field Change
2021-07-21 02:50 VL New Issue
2021-07-21 02:50 VL File Added: 1.jpg
2021-07-21 02:50 VL File Added: 2.jpg
2021-07-21 02:50 VL File Added: 3.jpg
2021-07-22 02:00 infrastation Note Added: 0004327
2021-07-22 07:13 VL Note Added: 0004329
2021-07-22 07:13 VL File Added: 4.jpg
2021-07-22 11:26 infrastation Note Added: 0004331

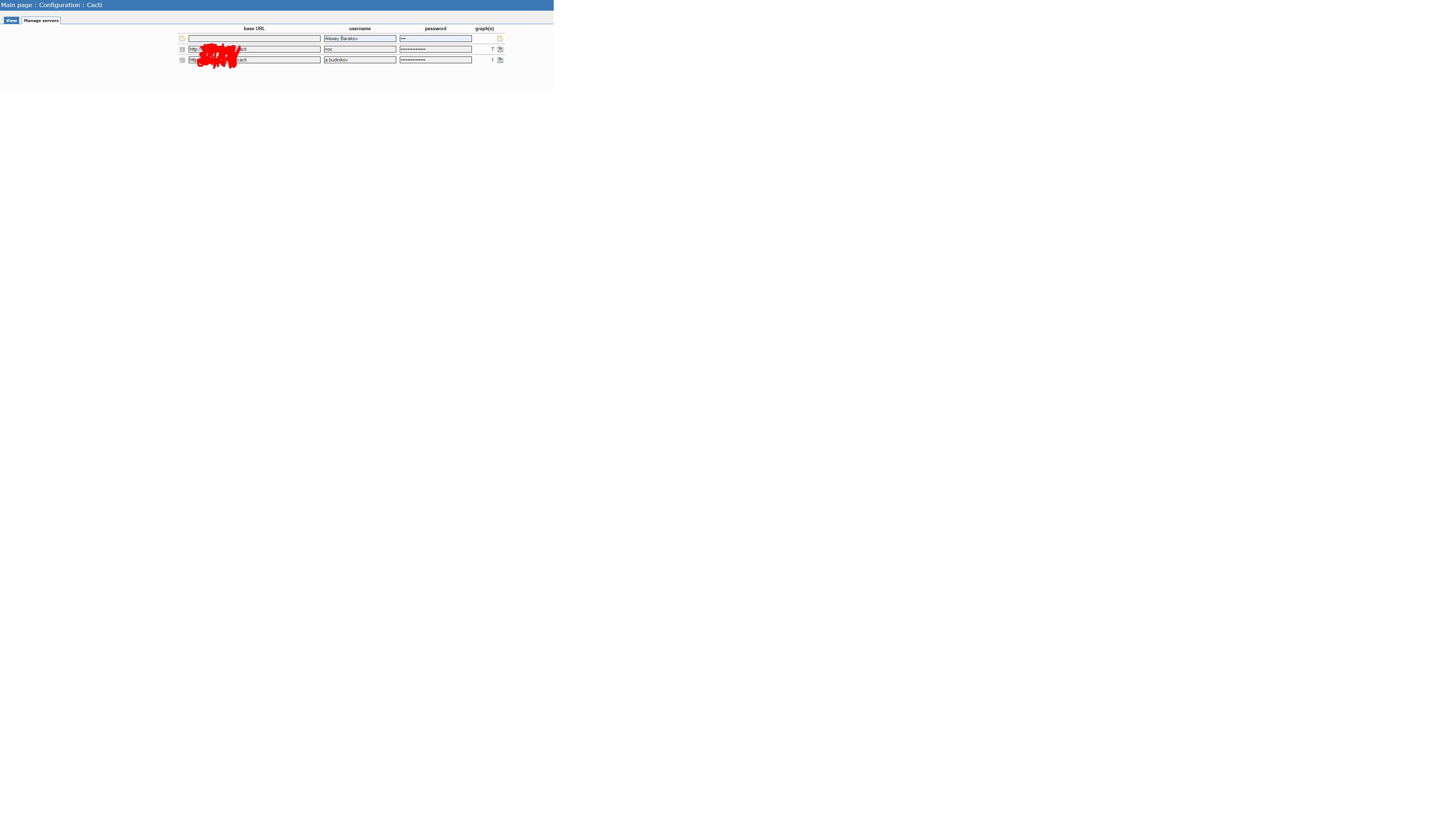

2021-07-29 06:54 VL Note Added: 0004339
